EMMERICH - Accessory

SNMP Card Modbus Card

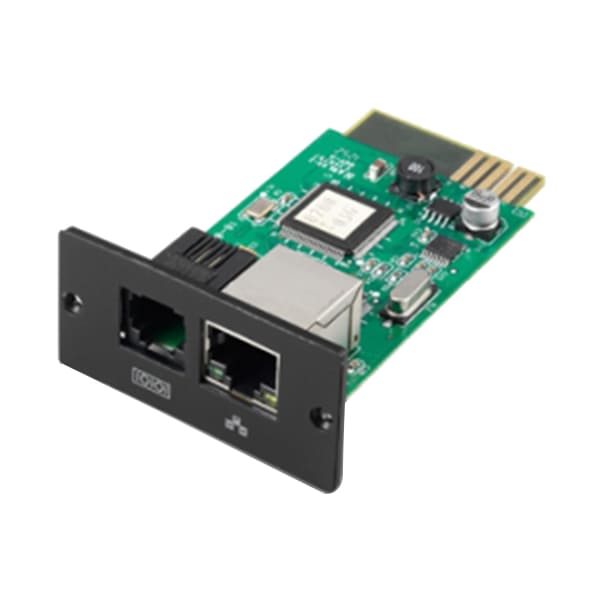

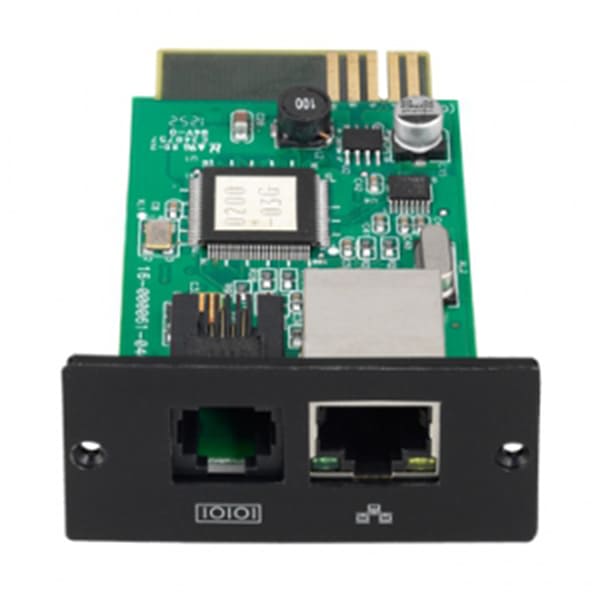

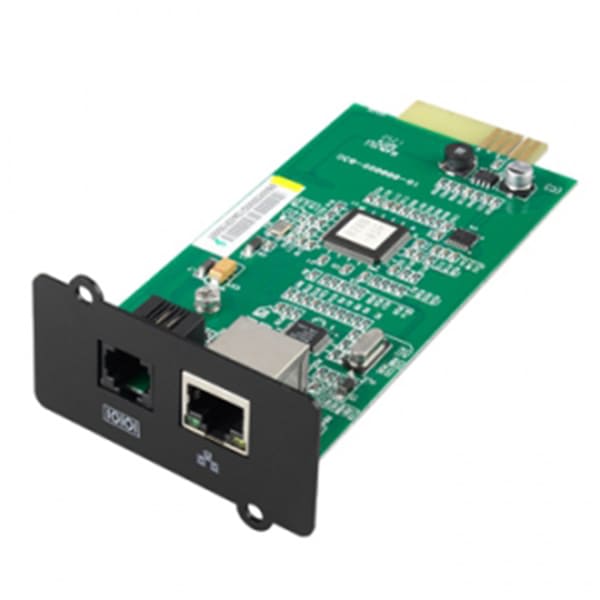

SNMP Card

SNMP | Emmerich Accessory SNMP | Emmerich Accessory SNMP | Emmerich Accessory
SNMP | Emmerich Accessory
SNMP | Emmerich Accessory
SNMP | Emmerich Accessory

Integrated with ViewPower software, SNMP Manager works as an enhanced communication solution for UPS monitoring and management. This SNMP manager card allows remote monitor and manage multiple UPSs from anywhere with internet access. ViewPower software will leverage internet capability of SNMP manager to remotely program or shut down UPSs.

Performances

  • Allows control and monitoring of multiple UPSs through RJ-45 network connection
  • Real-time dynamic graphs of UPS data (voltage, frequency, load level, battery level)
  • Warning notifications via audible alarm, broadcast, mobile messenger, e-mail and SNMP traps
  • Historic data log stored in centralized PC database
  • Simple firmware upgrade with one click
  • Password security protection and remote access management
  • Supports optional environmental monitoring detector for temperature, humidity and smoke
  • 2-year product warranty



Technical Specification

MODEL SNMP Manager
Protocol Support SNMP-V1, SNMP-V2
UPS Slot Type Golden Finger
Network Support RJ45 10/100BaseT
Supported MIB RFC1213, RFC1628, Voltronic MIB
Supported Software ViewPower
Supported OS Windows family, Liunx, MAC, and Solaris
Supported Extension Devices Optional environmental monitoring detector
Power Input 12V
Power Consumption 2 watt (max.)
Operating Temperature 0 ~ 40°C
Operating Humidity 0% ~ 95%
PHYSICAL
Dimension, D x W x H (mm) 23 x 47 x 15
Net Weight (kgs) 34.7 g

Product specifications are subject to change without further notice.

Download

Brochure

SNMP Brochure

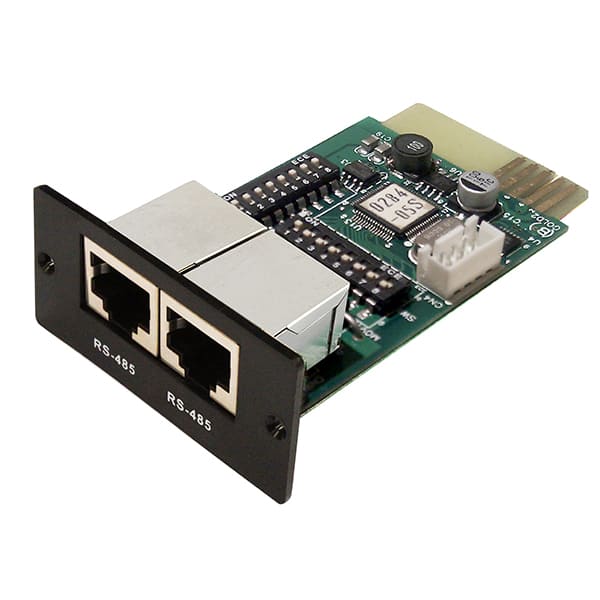

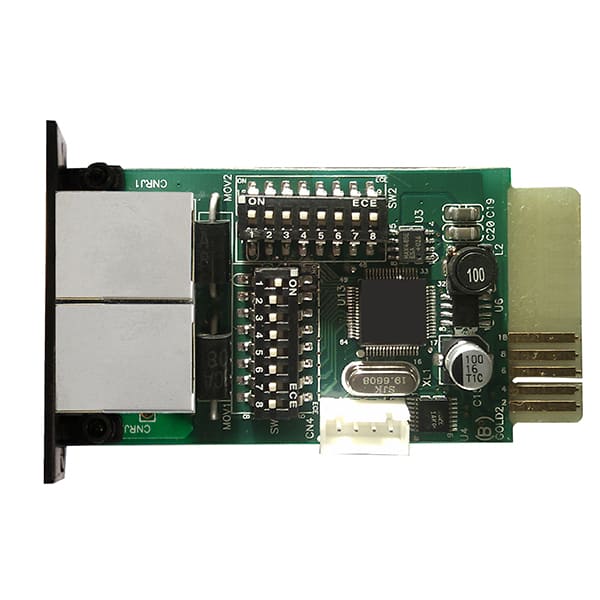

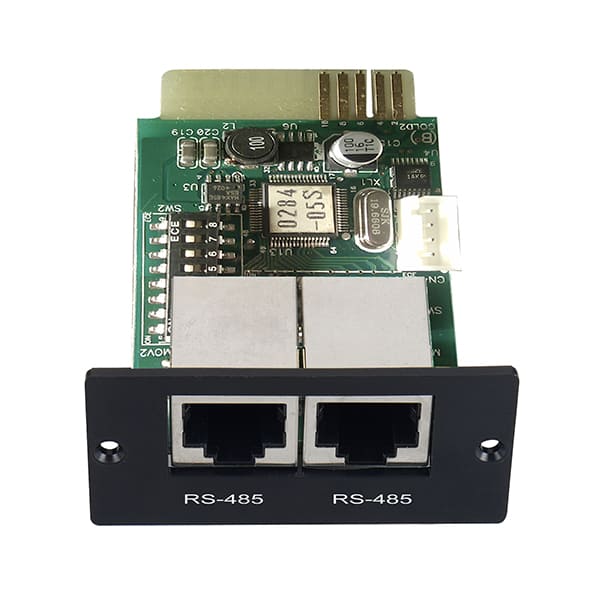

Modbus Card



Modbus | Emmerich Accessory Modbus | Emmerich Accessory Modbus | Emmerich Accessory
Modbus | Emmerich Accessory
Modbus | Emmerich Accessory
Modbus | Emmerich Accessory

The Modbus card provides UPS and PV inverter systems with the functionality of communication with PCs through MODBUS protocol:

Implements MODBUS RTU protocols
Provides MODBUS functions including read Holding Registers and write Registers.
Provides RS232 and RS485 interface

Performances

  • Real-time control and monitoring of multiple UPSs or inverters via RS-232/RS-485 communication port
  • Supports Modbus RTU protocol
  • Built-in dip switch for RS-232 and RS-485 configuration
  • Proviedes MODBUS functions including read Holding Registers and write Registers
  • Provides surge protection



Technical Specification

MODEL Modbus
Protocol Support Modbus RTU
Power Input 12 V
Power Consumption 0.5 watt (max.)
Operating Temperature 0 ~ 40°C
Operating Humidity 0% ~ 95%
Network Connection RS-485 and RS232/RS-485 through isolated RJ45 port
Baud Rate 2400 bps/4800 bps/9600 bps/19200 bps
Parity Even/Odd/None
PHYSICAL
Dimension, D x W x H (mm) 84 x 43 x 14
Net Weight (kgs) 34.7 g

Product specifications are subject to change without further notice.

Download

Brochure

Modbus Brochure
