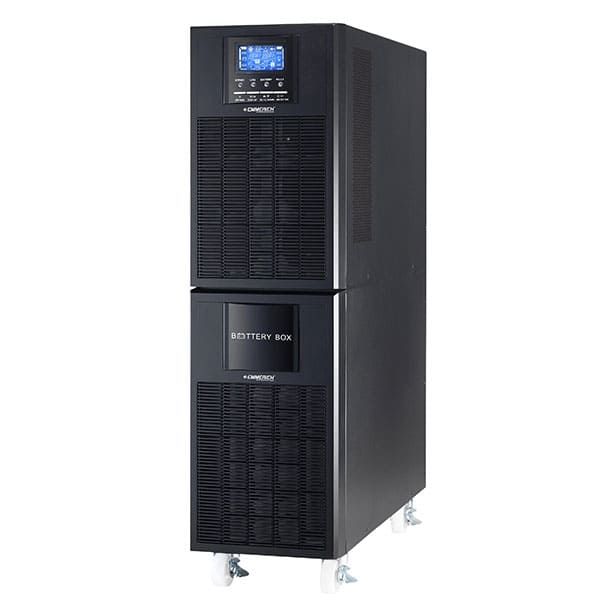

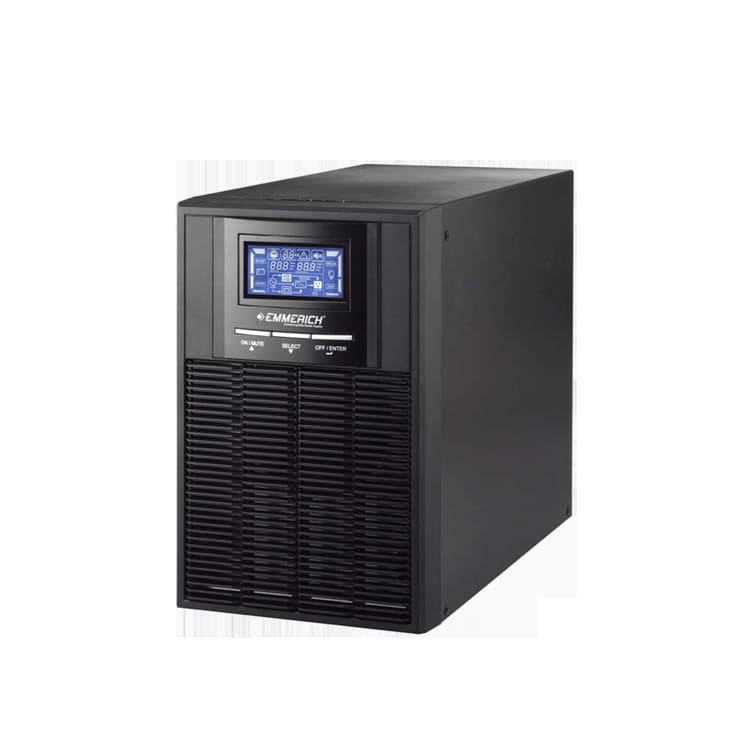

Emmerich’s Compact Pro series is a UPS range in a tower format equipped with on-line double-conversion technology and the latest features to make it an advanced protection system for sensitive and critical loads. High output power factor (PF=0.9) to ensure availability to all types of loads. Compact Pro range is available in 1-2-3-6-10kVA single-phase models.

Compact Pro offering the highest levels of reliability and protection for critical servers, voice and data processing IT systems. For facilities that require more back-up time, Compact Pro (ER models) can be fitted with large capacity battery extension which built in internal extra charger.
In terms of status information, each Compact Pro has a built-in with an LCD display to show input and output voltages, load, UPS operating status information and battery charge status. Emmerich’s Compact pro is a totally new design, fully microprocessor controlled and constructed to achieve the highest levels of operating efficiency and configuration options.

Emmerich’s Compact Pro series also have extensive monitoring and communication options via the built-in USB HID interface, an intelligent slot for SNMP cards or relays and a wide range of software packages available – free monitoring version downloadable for Windows, Linux, Unix or Mac and packages available for multi servers or virtualised systems.

Performances

  • True double-conversion
  • Output power factor 0.8
  • Generator compatible
  • Converter mode available
  • Input power factor correction
  • Wide input voltage (110 V – 300 V)
  • Optional isolation transformer available
  • Microprocessor control optimizes reliability
  • ECO mode for energy saving (Only available for 1-3KVA)
  • Smart SNMP works well with either USB or RS-232 together
  • Comprehensive display allows easy monitoring and access of UPS status
  • Adjustable battery number only available for 6K and up models
  • Emergency power off (EPO) function is only available for 6K/10K models



Technical Specification

MODEL CMP 1 (ER) CMP 2 (ER) CMP 3 (ER) CMP 6 (ER) CMP 10 (ER)
PHASE Single phase with ground
CAPACITY* 1000 VA / 800 W 2000 VA / 1600 W 3000 VA / 2400 W 6000 VA / 4800 W 10000 VA / 8000 W
INPUT
Nominal Voltage 100/110/115/120/127 VAC or 200/208/220/230/240 VAC 208/220/230/240 VAC
Input Voltage Range 55-150 VAC or 110-300 VAC (Based on load at 50%) 110-300 VAC (Based on load at 50%)
85-140 VAC or 160-280 VAC (Based on load at 100%) 176-300 VAC (Based on load at 100%)
Frequency Range 40 ~ 70 Hz 46 ~ 54 Hz or 56 ~ 64 Hz
Power Factor ≧0.99 @ Nominal Voltage (100% load)
OUTPUT
Output Voltage 100/110/115/120/127 VAC or 200/208/220/230/240 VAC 208/220/230/240 VAC
Voltage Regulation ± 1 %
Frequency Range (Synchronized Range)   47 ~ 53 Hz or 57 ~ 63 Hz 46 ~ 54 Hz or 56 ~ 64 Hz
Frequency Range (Batt. Mode) 50 Hz ± 0.25 Hz or 60 Hz ± 0.3 Hz 50 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio 3:1
Harmonic Distortion ≦ 3 % THD (Linear Load) ≦ 3 % THD (Linear Load)
≦ 6 % THD (Non-linear Load) ≦ 5 % THD (Non-linear Load)
Transfer Time AC Mode to Battery Mode Zero
Inverter to Bypass 4 ms (Typical) Zero
Waveform (Batt. Mode) Pure Sinewave
EFFICIENCY
AC Mode 90% 91% 90% 92% 93%
Battery Mode 89% 90% 89% 91% 91%
BATTERY
Standard Model Battery Type 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah 12 V / 9 Ah
Numbers 2 4 6 16 20 16 20
Typical Recharge
Time
4 hours recover to 90% capacity 9 hours recover to 90% capacity
Charging Current (max.) 1 A 1 A / 2 A
Charging Voltage 27.4VDC ± 1% 54.7 VDC ±1% 82.1VDC ±1% 218.4 VDC ±1% 273VDC ±1% 218.4 VDC ±1% 273VDC ±1%
Long-run Model** Battery Type Depending on the capacity of external batteries
Numbers 2 3 4 6 8 6 8 16 ~ 20 (Adjustable)
Charging Current (max.) 1A/2A/4A/6A (Adjustable) 1A/2A/4A/6A
(Adjustable, 6A is only available for 16pcs batteries)
Charging Voltage 27.4VDC ± 1% 41.0VDC ± 1% 54.7 VDC ±1% 82.1 VDC ±1% 109.4VDC ±1% 82.1 VDC ±1% 109.4VDC ±1% 273 VDC ±1% (Based on 20pcs batteries)
INDICATORS
LCD Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously sounding
PHYSICAL
Standard Model Dimension, D x W x H(mm) 282 x 145 x 220 397 x 145 x 220 421 x 190 x 318 369 x 190 x 688 442 x 190 x 688
Net Weight (kgs) 9.8 17 27.6 61 74 66 76
Long-run Model** Dimension, D x W x H(mm) 282 x 145 x 220 397 x 145 x 220 369 x 190 x 318 442 x 190 x 318
Net Weight (kgs) 4.1 6.8 7.4 12 16
ENVIRONMENT
Humidity 20-90 % RH @ 0- 40°C (Non-condensing) 0-95% RH @ 0-50°C 0-95% RH @ 0-40°C
(non-condensing) (non-condensing)
Noise Level Less than 50dB @ 1 Meter Less than 55dB @ 1 Meter Less than 58dB @ 1 Meter
MANAGEMENT
Smart RS-232 / USB Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux and MAC
Optional SNMP Power management from SNMP manager and web browser

Product specifications are subject to change without further notice.
