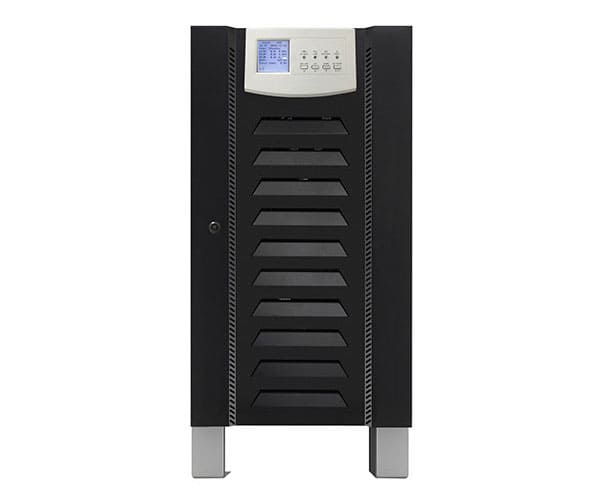

The Emmerich’s Galaxy Net series is one of the most reliable, high-performance three-phase Uninterruptible Power Supply system (UPS) on the market, and provide maximum protection with reliable galvanically isolated power and power quality for mission critical loads, including data centres, industrial processes, telecommunications, security and electro-medical systems.

Galaxy Net is an on-line double conversion UPS which embedded with isolation transformer. Galaxy Net series will eliminate common mode noise and the need to install expensive dedicated circuits. The Galaxy Net range includes three-phase input and single-phase output versions from 10 to 40 kVA, and three-phase input and output versions from 10 to 200 kVA. Plus, the reliability of the system can be increased with the installation of several redundant units or it can grow in parallel based on the needs of the installation

Performances

  • Online double-conversion
  • Output power factor 0.8
  • Accept dual-mains input
  • Adjustable battery numbers
  • True galvanic isolation transformer design
  • DSP technology guarantees high reliability
  • Parallel operation with up to 4 units (option)
  • Control designed to withstand all kinds of loads
  • Intelligent battery management to prolong battery lifecycle
  • Independent ventilation enhance durable operation under harsh environment



Technical Specification

MODEL GNM 10 GNM 20 GNM 30 GNM 40 GNT 10 GNT 15 GNT 20 GNT 30 GNT 40 GNT 60 GNT 80 GNT 100 GNT 120 GNT 160 GNT 200
PHASE (IN/OUT) 3 PHASE / 1 PHASE 3 PHASE / 3 PHASE
CAPACITY 10 KVA /    8 KW 20 KVA / 16 KW 30 KVA / 24 KW 40 KVA / 32 KW 10 KVA /    8 KW 15 KVA / 12 KW 20 KVA / 16 KW 30 KVA / 24 KW 40 KVA / 32 KW 60 KVA / 48 KW 80 KVA / 64 KW 100 KVA / 80 KW 120 KVA / 96 KW 160 KVA / 128 KW 200 KVA / 160 KW
INPUT
Nominal Voltage  3 x 380 VAC/400 VAC
Acceptable Voltage Range 285 VAC ~ 475 VAC 285 VAC ~ 485 VAC
Frequency 50/60 Hz ± 10 %
INVERTER
Nominal Voltage 220 VAC/230 VAC/240 VAC (1Ph + N) 3 x 380 VAC/400 VAC (3Ph + N)
Precision Stationary: ±1%
Transitory: ±5% (load variations 100-0-100%)
Frequency 50/60 Hz synchronised ±1 %
With mains absent ±0.1 Hz
Max. Synchronization Speed ±1 Hz/s
Waveform Pure Sinewave
Total Harmonic Distortion (THDv) <2% (Linear Load) ; <5% (Non-linear Load)
Dynamic Recovery Time 3 cycles at 90 % of the static value
Admissible Overload 110% for 10min; 150% for 60sec ; >160% for 200ms
Admissible Crest Factor 3:1
Admissible Power Factor 0.6~1 (inductive or capacitive)
Imbalance Output Voltage @ 100% Unbalanced Load  <1%
Total Harmonic Distortion (THDv) High overload, short-circuit: RMS Voltage Limit
High Crest-Factor current: Peak Voltage Limit
STATIC BYPASS
Type Solid state
Voltage 220 VAC  380 VAC/400 VAC (3Ph + N)
Frequency 50/60 Hz
Activation Criterion Microprocessor control
Transfer Time Zero
Admissible Overload 150% for 1 hour; 180% for 30sec; >200% for 200ms
Transfer to Bypass Immediate, for overloads above 160%
Retransfer Automatic after alarm clear
MAINTENANCE BYPASS
Type Without interruption
Voltage 220VAC  380VAC/400VAC (3Ph + N)
Frequency 50/60 Hz
SYSTEM
Overall Efficiency Line Mode ≧92% ≧93% ≧94%
Battery Mode ≧92.5% ≧93% ≧94%
ECO Mode (Non-parallel models) Yes
EPO Function Yes
Standard IEC 61000-4-5 Protection surge, IEC 62040-2 EMC/EMI, IEC62040-1 Safety
BATTERY & CHARGER
Battery Type and Numbers 12VDC x 32 pcs (29~32 pcs adjustable)
Nominal Battery Voltage 384 VDC (Based on 32pcs batteries)
Charging Method CC/CV
Precision ±1%
Charging Current Default 10A; Maximum 40A; 5A@ full load
Charging Voltage 432 VDC (Based on 32pcs batteries)
PHYSICAL
Dimensions, D x W x H (mm) 656 x 405 x 817 821 x 432 x 1159 656 x 405 x 817 656 x 405 x 941 821 x 432 x 1159 975 x 554 x 1286 975 x 554     x 1326 1051 x 705 x 1646
Net Weight (Kgs) 118 145 193 278 118 128 145 193 278 365 471 573 650 760 790
ENVIRONMENT
Operation Temperature  0 - 35°C continuous running, 40°C 8-hour running at nominal input voltage, recharging batteries and no overload, 45°C derating to 85% with linear load
Operation Humidity 0~90% (non-condensing)
Noise Level Less than 70dB @ 1 Meter
MANAGEMENT
Modbus RS-232/RS485 Supports Windows® 2000/2003/XP/Vista/2008/7/8/10, Linux and MAC
Dry Contacts 6 outputs and 2 inputs
Optional SNMP Power management from SNMP manager and web browser

* The maximum current is never higher than 40A.
Product specifications are subject to change without further notice.
