Lite Pro

400 - 2000VA
1 : 1

Lite Pro

Desain kecil dan memberikan rasa aman.

Lite Pro | Emmerich UPS | Jual UPS | Online UPS | UPS ICA | UPS APC | UPS RIELLO | UPS EMERSON Lite Pro | Emmerich UPS | Jual UPS | Online UPS | UPS ICA | UPS APC | UPS RIELLO | UPS EMERSON
Lite Pro | Emmerich UPS
Lite Pro | Emmerich UPS

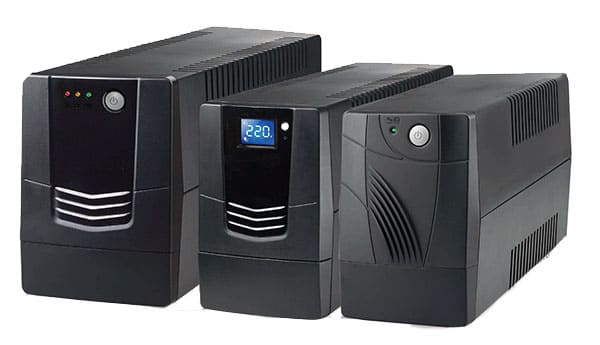

Emmerich’s Lite Pro series featuring Line-interactive technology UPS System which provides comprehensive protection solution for equipment and information within home and professional (small businesses, offices, shops, etc.) computing environments. Lite Pro series not only offers greater comprehensive power protection against surges and spikes, but also provides pure voltage with built-in AVR stabilizer.

The UPS will continue providing clean and stable power to connected equipment while its embedded microprocessor controller guarantees high reliability, perfect for any home or small office application. Emmerich’s Compact Pro series also have extensive monitoring and communication options via the built-in USB HID interface, and a wide range of software packages available free monitoring version downloadable for Windows, Linux, Unix or Mac and packages available for multi servers or virtualised systems.

Performances

  • 400VA/600VA/800VA/1KVA/1.5KVA/2KVA line interactive UPS
  • Touch screen LCD to display UPS information circularly (option)
  • Compact size
  • Excellent microprocessor control guarantees high reliability
  • Boost and buck AVR for voltage stabilization
  • Auto restart while AC is recovering
  • Off-mode charging
  • Cold start function
  • Generator compatible (option)



Technical Specification

MODEL LTP 400 LTP 600 LTP 800 LTP 1000 LTP 1500 LTP 2000
CAPACITY 400 VA / 240 W 600 VA / 360 W 800 VA / 480 W 1000 VA / 600 W 1500 VA / 900 W 2000 VA / 1200 W
INPUT
Voltage 110/120 VAC or 220/230/240 VAC
Acceptable Voltage Range 81-145 VAC / 162-290 VAC
Frequency Range 50/60 Hz (Auto sensing)
OUTPUT
Voltage 110/120 VAC or 220/230/240 VAC
AC Voltage Regulation (Batt. Mode) ± 10 %
Frequency Range (Batt. Mode) 50 Hz or 60 Hz ±1 Hz
Transfer Time Typical 2-6 ms
Waveform (Batt. Mode)  Simulated Sinewave
BATTERY
Battery Type & Number 12 V/4.5 Ah x 1 12 V/7 Ah x 1 12 V/9 Ah x 1 12 V/7 Ah x 2 12 V/9 Ah x 2 12 V/9 Ah x 2
Typical Recharge Time 4 hours recover to 90% capacity 4-6 hours recover to 90% capacity
INDICATORS
LCD Model Input voltage, output voltage, battery capacity, load level and UPS status
LED Model AC Mode Green lighting Green lighting
Battery Mode Green flashing Yellow flashing
Fault N/A Red lighting
ALARM
Battery Mode Sounding every 10 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
Fault Continuously sounding
PHYSICAL
LED Model Dimension, D x W x H(mm) 279 x 101 x 142 320 x 130 x 182
Net Weight (kgs) 3.55 4.2 4.9 8.2 10.4 10.6
LCD Model Dimension, D x W x H(mm) 300 x 101 x 142 320 x 130 x 182
Net Weight (kgs) 3.7 4.4 5 8.2 10.4 10.6
ENVIRONMENT
Humidity 0-90 % RH @ 0- 40°C (Non-condensing)
Noise Level Less than 40dB

Product specifications are subject to change without further notice.

Download

Brochure

Lite Pro Brochure
