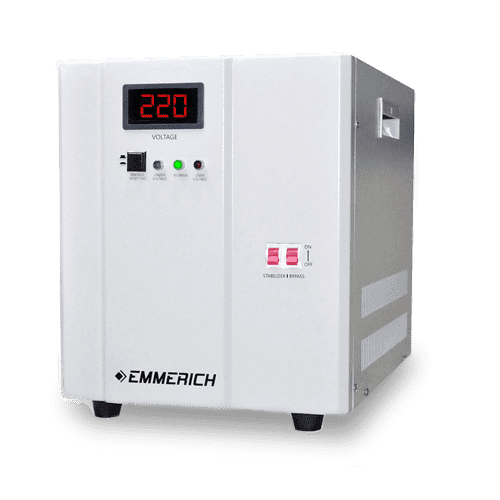

Emmerich Stabilizer - iDVM is the best solution and choice to protect all household, office and small industrial electronic equipment from electrical voltage fluctuations. We designed the Emmerich electric stabilizer so that it can be used for 24 hours non-stop from the first time it is turned on. Emmerich iDVM stabilizers are available in capacities of 1 - 1.5 - 3 - 5 - 7.5 - 10 - 15 - 20 - 30 kVA single phase input and output models.
The digital microprocessor controller system always monitors the input voltage continuously. If the voltage fluctuates, the controller will give a command to the relay combination system device to adjust the constant output voltage to the 220 V level with an accuracy level of 5%.

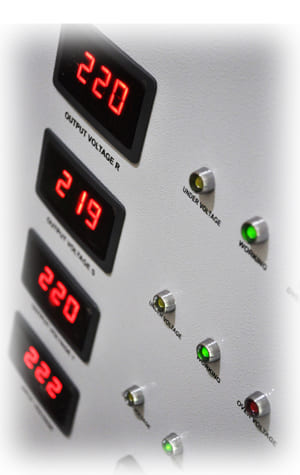

Designed to use a digital monitoring display to display Input-Output voltage in real time. Apart from that, we also added an LED indicator to make it easier for you to know whether the stabilizer status is in normal condition or under over voltage. Of course, with the Digital Display and LED indicators, everything is easier to read and more focused.

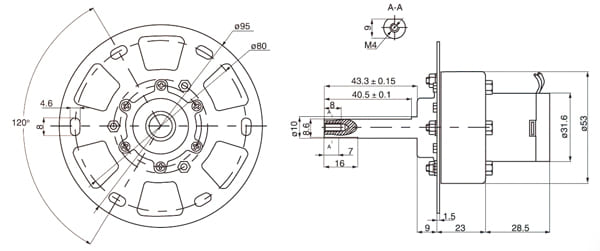

iDVM uses DC servo motor technology combined with the latest digital microprocessor. DC servo motors are specifically designed for use in Emmerich stabilizers. The motor mount is designed to match the mount on the torodial transformer winding so that it functions perfectly and reliably. A reliable DC servo motor has strong torque and a fast response to move the carbon brush on the Toroidal transformer to produce a stable and accurate electric voltage. The DC servo motor combined with a digital microprocessor controller makes this stabilizer always ready to produce a stable electric voltage.
The bypass system is designed to be integrated in the stabilizer unit, now bypassing is easy, safe and practical. We reimagined the bypass system by using Easy Bypass, this system makes it much easier and safer for you to bypass when a problem occurs with the unit. You just need to select bypass or stabilizer mode.
You can save costs, no longer need additional costs to install bypass panels on your walls. And of course your walls will be more beautiful and clean without bypass panels.
The Emmerich stabilizer is designed not only to stabilize electric voltage, but also to provide full protection for the electrical equipment we use. iDVM is equipped with an under-over voltage protection feature, which will provide cut-off protection if the electrical voltage is too high or too low at the input voltage, thus providing protection for the electrical equipment we use. The temperature trip protection feature is also embedded in the iDVM, if the stabilizer experiences an overload resulting in excess heat, the heat sensor will work and give a command to the controller board to disconnect the stabilizer output from the electricity supply.
| Type | iDVM |
| Capacity | 1 - 1,5 - 3 - 5 - 7,5 - 10 - 15 - 20 - 30 kVA |
| Input Voltage | 150 - 250 V |
| Output Voltage | 220 V |
| Number of Phase | 1 |
| Rated Frequency | 50/60Hz |
| Output Accuracy | 3% |
| Technology | Microprocessor with DC servo Motor |
| Insulation | Class H |
| Response Time | <0,1s |
| Efficiency | >98% |
| Auto Protection | Under Voltage, Over Voltage |
| Cooling System | Automatic Fan |
| Wave Deformation | Nill |
| Operating Temperature | 0-40°C |
| Relative Humidity | 90% Non condensing |
| Isolation Transformer | Optional |
| Protection Degree | IP 20 |
Product Design, specification, dimension and colour can be changed anytime without advance notice. Please contact your nearest dealer/store for more information and details
