Multi Net

3 : 1
10 - 30kVA
3 : 3
10 - 200kVA

Multi Net

More power for your data center.

Multi Net - UPS Emmerich
Multi Net - UPS Emmerich
Multi Net - UPS Emmerich
 Multi Net - UPS Emmerich

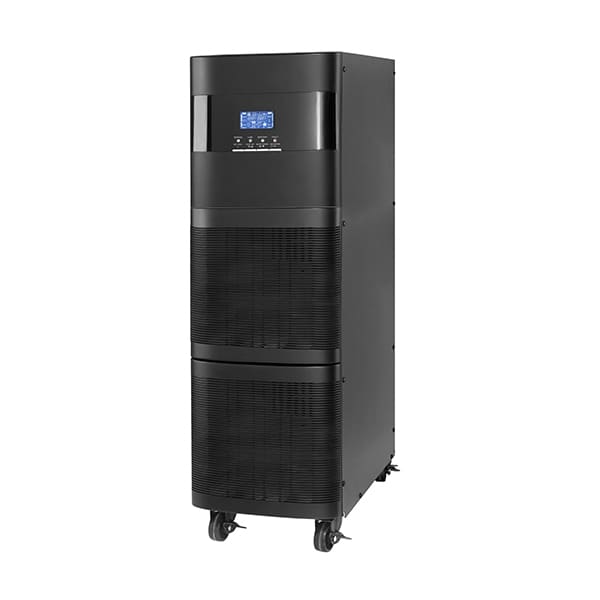

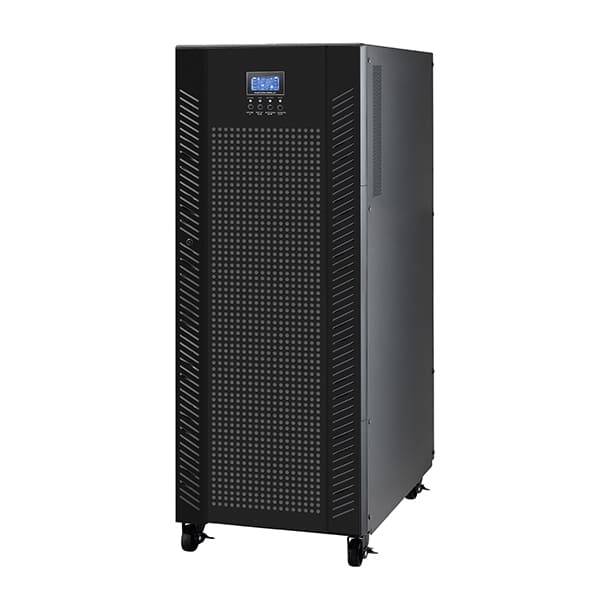

series is a UPS range featuring high-performance, On-line double conversion (VFI) technology UPS with a output power factor 0,9. It's designed in small footprints with DSP technology and active input power factor correction design to ensure better and reliable output voltage conditions, power quality and power performance at all times, at the same time, achieves significant energy and financial savings in terms of installation and operating costs.

Emmerich's Multi Net series is ideal for protecting IT Networks, data centres, telecommunications systems, and critical systems in general. Emmerich's Multi Net series is available in 10 - 20 - 30 kVA models with three-phase input and single phase output, and 10 - 20 - 30 - 40 - 60 - 80 - 100 - 120 - 160 - 200kVA models with three-phase input and output.

The Emmerich's Multi Net series provides maximum adaptability, the possibility of parallel redundant expansion and extensive communication options via the built-in USB HID interface, an intelligent slot for SNMP cards or relays and a wide range of software packages available - free monitoring version downloadable for Windows, Linux, Unix or Mac and packages available for multi servers or virtualised systems. Finally, also worth noting is the unit's lightweight design and reduced dimensions, enabling it to be easily installed and ensuring that footprint is minimal.

Performances
Technical Specification
Download

Performances

  • True double-conversion
  • Adjustable battery design
  • Output power factor 0.8
  • Maintenance bypass available
  • Optional N+X parallel redundancy
  • Emergency power off function (EPO)
  • 50Hz/60Hz frequency converter mode
  • ECO mode operation for energy saving
  • DSP technology guarantees high reliability
  • Active power factor correction in all phases
  • SNMP+USB+RS-232 multiple communications
  • Smart battery charger design to optimize battery performance
