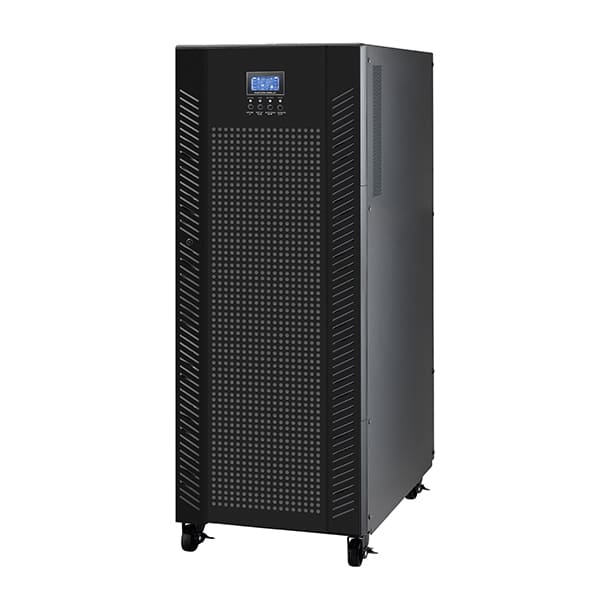

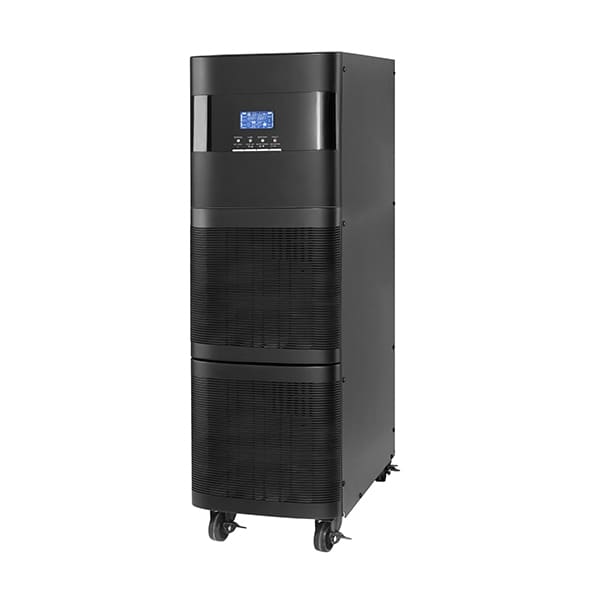

Multi Net

Lebih bertenaga untuk pusat data center Anda.

seri ini adalah rangkaian UPS yang menampilkan UPS berteknologi konversi ganda On-line (VFI) berkinerja tinggi dengan faktor daya keluaran 0,9. Seri ini dirancang dalam ukuran kecil dengan teknologi DSP dan desain koreksi faktor daya masukan aktif untuk memastikan kondisi tegangan keluaran yang lebih baik dan handal, kualitas daya, dan kinerja daya setiap saat, pada saat yang sama, mencapai penghematan energi dan biaya yang signifikan dalam hal pemasangan dan pengoperasian.

Seri Multi Net Emmerich sangat ideal untuk melindungi Jaringan IT, pusat data, sistem telekomunikasi, dan sistem penting secara umum. Seri Multi Net Emmerich tersedia dalam model 10 - 20 - 30 kVA dengan Three Phase Input dan Single Phase Output, dan model 10 - 20 - 30 - 40 - 60 - 80 - 100 - 120 - 160 - 200kVA dengan hree Phase Input dan Output.

Seri Multi Net Emmerich memiliki kemampuan penyesuaian maksimum, dapat diekspansi paralel dan pilihan komunikasi yang luas melalui antarmuka USB HID internal, slot cerdas untuk SNMP Card atau relay SNMP dan berbagai paket perangkat lunak yang tersedia - versi pemantauan gratis dapat diunduh untuk Windows, Linux, Unix atau Mac dan paket tersedia untuk multi server atau sistem tervirtualisasi. Terakhir, yang juga perlu diperhatikan adalah desain unit yang ringan dan dimensi yang diperkecil, sehingga mudah dipasang dan meminimalisir kebutuhan ruangan.

Performances

Technical Specification

Download

Performances

True double-conversion
Adjustable battery design
Output power factor 0.8
Maintenance bypass available
Optional N+X parallel redundancy
Emergency power off function (EPO)
50Hz/60Hz frequency converter mode
ECO mode operation for energy saving
DSP technology guarantees high reliability
Active power factor correction in all phases
SNMP+USB+RS-232 multiple communications
Smart battery charger design to optimize battery performance

Technical Specification

MODEL

MNM 10 (ER)

MNM 20 (ER)

MNM 30 (ER)

MNT 10 (ER)

MNT 20 (ER)

MNT 30 (ER)

MNT 40 (ER)

MNT 60

MNT 80

MNT 100

MNT 120

MNT 160

MNT 200

PHASE (IN/OUT)

3 PHASE / 1 PHASE

3 PHASE / 3 PHASE

CAPACITY*

10 KVA

20 KVA

30 KVA

10 KVA

20 KVA

30 KVA

40 KVA

60 KVA

80 KVA

100 KVA

120 KVA

160 KVA

200 KVA

8 KW

16 KW

24 KW

8 KW

16 KW

27 KW

36 KW

54 KW

72 KW

90 KW

108 KW

144 KW

180 KW

INPUT

Nominal Voltage

3 x 400 VAC (3Ph+N)

Voltage Range

190-520 VAC (3-phase) @ 50% load ;

208-478 VAC (3-phase) @ 70% load

305-478 VAC (3-phase) @ 100% load

Frequency Range

46 ~ 54 Hz or 56 ~ 64Hz

40 ~ 70Hz

Power Factor

≥ 0.99 @ 100% Load

OUTPUT

Output Voltage

208/220/230/240 VAC (1Ph+N)

3 x 380/400/415 VAC (3Ph+N)

Voltage Regulation

± 1 %

Frequency Range (Synchronized Range)

46 ~ 54Hz or 56 ~ 64Hz

Frequency Range (Batt. Mode)

50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz

Current Crest Ratio

3:1

Harmonic Distortion

≤2 % THD (Linear Load) ;

≤4 % THD (Non-linear Load)

Transfer Time

AC Mode to Battery Mode

Zero

Inverter to Bypass

Zero

Waveform (Batt. Mode)

Pure Sinewave

Overload

AC Mode

100-110% for 10 min, 110-130% for 1 min,

>130% for 1 second

105-110% for 1 hr, 111-125% for 10 min,

Battery Mode

100-110% for 30 seconds, 110-130% for 10 seconds,

126-150% for 1 min, >150% for 200ms

>130% for 1 second

Parallel Capacity

No

up to 3 units in parallel

up to 2 units in parallel

EFFICIENCY

AC Mode

93%

94.0%

94.5%

ECO Mode

96%

97.0%

98.0%

Battery Mode

92%

93.5%

94.5%

BATTERY

Standard Model

Battery Type

12 V / 9 Ah

12 V / 7 Ah

12 V / 9 Ah

N/A

Numbers

16~20 pcs

16~20 pcs x

16~20 pcs

16~20 pcs x

(16+16) pcs x 2 strings

2 strings

3 strings

2 strings

Typical Recharge
Time

9 hours recover to 90% capacity

Charging Current (max.)

1 A

2 A

4 A

1 A

2 A

Charging Voltage

+/- 273 VDC

+/- 218 VDC

Long-run Model**

Battery Type

Depending on the capacity of external batteries

Numbers

16 ~ 20 pcs (Adjustable)

32 ~ 40 pcs (Adjustable)

Charging Current (max.)

4 A

8 A

12 A

4 A

8 A

24 A

32 A

40 A

48 A

Charging Voltage

+/- 13.65V x N (N=16~20)

+/- 13.7V*N (N = 16~20)

INDICATORS

LCD

UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

5.7" monochrome LCD or 10" Touch Type color LCD

ALARM

Battery Mode

Sounding every 4 seconds

Sounding every 2 seconds

Low Battery

Sounding every second

Sounding every 0.5 second

Overload

Sounding twice every second

Sounding every second

Fault

Continuously sounding

PHYSICAL

Standard Model

Dimension, D x W x H(mm)

592 x 250 x 576

815 x 250 x 826

815 x 300 x 1000

815 x 250 x 826

815 x 300 x 1000

N/A

Net Weight (kgs)

83

164

234

109

164

205

230

Long-run Model**

Dimension, D x W x H(mm)

592 x 250 x 576

815 x 250 x 826

592 x 250 x 826

815 x 300 x 1000

790 x 360 x 1010

940 x 567 x 1000

1040 x 567 x 1442

Net Weight (kgs)

28

40

64

38

40

60

61

108

113

194

229

301

335

ENVIRONMENT

Operation Temperature

0-40°C

Operation Humidity

< 95% and non-condersing

Noise Level

Less than 60dB @ 1 meter

Less than 70dB @ 1 Meter

Less than 73dB @ 1 Meter

MANAGEMENT

Smart RS-232 / USB

Supports Windows® 2000/2003/XP/Vista/2008, Windows2 7/8/10, Linux and MAC

Optional SNMP

Power management from SNMP manager and web browser

*When using internal batteries from 18-19, the unit will de-rate according to the below formula: P = PRating x N/20.
**Derate capacity to 90% of capacity when the output voltage is adjusted to 208VAC.
Product specifcations are subject to change without further notice
