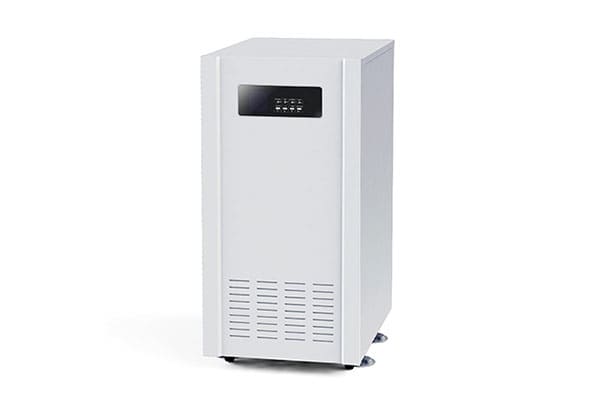

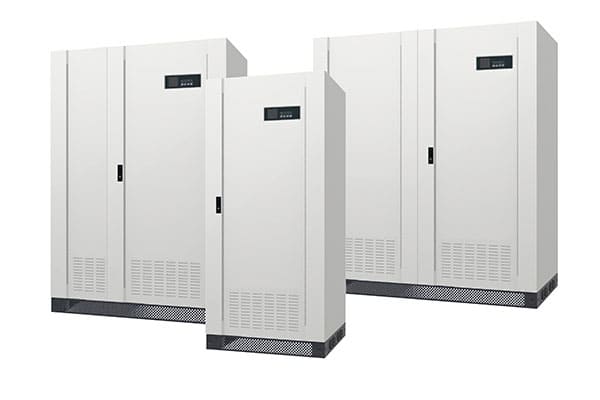

Galaxy Plus

Didesain khusus untuk kondisi lingkungan yang extreme.

Plus series adalah salah satu seri yang paling dapat diandalkan untuk aplikasi dan fasilitas industri, karena kekokohan dan desain ventilasinya yang unik. Untuk meningkatkan keandalan pengoperasian, seri Galaxy Plus diperbolehkan menghubungkan dua input daya terpisah. Seri Galaxy Plus Emmerich memberikan perlindungan maksimal dengan daya terisolasi galvanis yang andal dan memberikan daya berkualitas untuk beban kritis pada pusat data, proses industri, telekomunikasi, keamanan, dan sistem elektro-medis.

Seri Galaxy Plus Emmerich adalah adalah on-line double conversion UPS yang dilengkapi dengan trafo isolasi. Seri Galaxy Plus menghilangkan kebisingan dan kebutuhan untuk memasang sirkuit khusus yang mahal. Seri Galaxy Plus mencakup versi Three Phase input dan output dari 10 hingga 120 kVA, serta versi Three Phase input dan output dari 10 hingga 800 kVA. Ditambah lagi keandalan sistem dapat ditingkatkan dengan pemasangan beberapa unit redundant atau dapat ditingkatkan secara paralel berdasarkan kebutuhan instalasi.

Performances

Technical Specification

Download

Performances

True online double conversion with DSP control
Output power factor 0.9
Robust electrical performance to prevent damage from top and bottom connections
Screwless cabinet design and fully coating PCBAs to withstand harsh environment
Unique ventilation design for effective heat dissipation
Accepts dual-mains inputs
Front access makes maintenance and replacement easily
High short-circuit and overload capabilities
Easy integration into existing electrical networks or generator
Parallel capability up to 4 units

Technical Specification

Galaxy Plus 3 Phase / 1 Phase Galaxy Plus 3 Phase / 3 Phase

Galaxy Plus 3 Phase / 1 Phase

MODEL		GPM 10	GPM 20	GPM 30	GPM 40	GPM 60	GPM 80	GPM 100	GPM 120
PHASE (IN/OUT)		3 PHASE / 1 PHASE
CAPACITY		10 KVA / 8 KW	20 KVA / 16 KW	30 KVA / 24 KW	40 KVA / 32 KW	60 KVA / 48 KW	80 KVA / 64 KW	100 KVA / 80 KW	120 KVA / 96 KW
INPUT
Nominal Voltage		3 x 380 VAC (3Ph + G or 3Ph + N + G)
Acceptable Voltage Range		304 VAC ~ 456 VAC
Frequency		50Hz ±5 Hz (±10%)
OUTPUT
Nominal Voltage		220 VAC/230 VAC/240 VAC (Selectable) 1Ph + N
Connection Type		Hardwire 3-wire (1Ph+N+G)
Waveform		Pure Sinewave
Output Voltage Stability	Steady state	± 1%
	Transient state	± 5%
Frequency		50 Hz
Frequency Stability		± 1%
Frequency Synchronisation Range		± 5Hz (Equal to bypass working range)
Frequency Synchronisation Speed		1~2 Hz/s
Power Factor		0.8
Crest Factor		3:1
Total Harmonic Distortion (THDv)		<2% (Linear Load) <4% (Non-linear Load)
Dynamic in-rush Voltage Range		0%->100%->0% (R Load) <±5% : 20%->100%->20% (R Load) ±3%
Dynamic Recovery Time (III Grade)		0%~100% RCD load : <60 ms recover to 90% of nominal voltage
Phase Displacement		120° ±1% (balanced load)
		120° ±2% (imbalances 50% of the load)
Transfer Time		0 ms
Overload Capability		0% ~ 110% continuous running; 110% ~ 150% for 10 min~1 min; >160% for 200ms
Short-circuit Capability		60~100ms
Transient Response Time		< 5ms
BYPASS
Connection Type		Hardwire 3-wire (1Ph+N+G)
Input Voltage Range		220VAC ± 25%
Overload Capability		1.5 In~1.8 In 1h~30s
Short-circuit Capability		1.8 In ~ >2.0 In 30s~200ms
SYSTEM
Efficiency (At Linear Load)		≥90%
ECO Mode (Non-parallel models)		Yes
EPO Function		Yes
Standard		IEC 61000-4-5 Protection surge, IEC 62040-2 EMC/EMI, IEC62040-1 Safety
BATTERY & CHARGER
Rectifier	Type	6 pulse
	Rated output voltage	384 VDC
	Charger voltage	290VDC ~ 435VDC (Adjustable)
	Charging current(max)	20A	40A
Battery	Type	Support VRLA Battery
	Numbers	32 Pcs (29 ~ 32 adjustable)
	Reverse Diode	Yes
	Cold Start	Yes
PHYSICAL
IP Protection		IP20 (Default), IP21/IP31 (Option)
Dimensions, D x W x H (mm)		800 x 800 x 1800						800 x 1200 x 1800
Net Weight (Kgs)		360	400	430	490	610	680	900	920
ENVIRONMENT
Operating Temperature		0~ 35°C continuous running, 40°C 8-hour running at nominal input voltage, recharging batteries and no overload,
		45°C derating to 85% with linear load
Humidity		0~90% (non-condensing)
Noise Level		Less than 70dB @ 1 Meter
MANAGEMENT
Modbus RS-232/RS485		Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC
Dry Contacts		6 outputs and 2 inputs
Optional SNMP		Power management from SNMP manager and web browser

Galaxy Plus 3 Phase / 3 Phase

MODEL

GPT 10

GPT 15

GPT 20

GPT 30

GPT 40

GPT 60

GPT 80

GPT 100

GPT 120

GPT 160

GPT 200

GPT 250

GPT 300

GPT 400

PHASE (IN/OUT)

3 PHASE / 3 PHASE

CAPACITY

10 KVA / 8 KW

15 KVA / 12 KW

20 KVA / 16 KW

30 KVA / 24 KW

40 KVA / 32 KW

60 KVA / 48 KW

80 KVA / 64 KW

100 KVA / 80 KW

120 KVA / 96 KW

160 KVA / 128 KW

200 KVA / 160 KW

250 KVA / 200 KW

300 KVA / 240 KW

400 KVA / 320 KW

INPUT

Nominal Voltage

3 x 380 VAC/400 VAC/415 VAC (3Ph + N or 3Ph + N + G)

Acceptable Voltage Range

304 VAC ~ 456 VAC

Frequency

50 Hz ±5 Hz (±10%)

OUTPUT

Nominal Voltage

3 x 380 VAC/400 VAC/415 VAC (Selectable)

Connection Type

Hardwire 5-wire (3Ph+N+G)

Waveform

Pure Sinewave

Output Voltage Stability

Steady state

± 1%

Transient state

± 5%

Frequency

50 Hz

Frequency Stability

± 1%

Frequency Synchronisation Range

± 5Hz (Equal to bypass working range)

Frequency Synchronisation Speed

1~2 Hz/s

Power Factor

0.8

Crest Factor

3:1

Total Harmonic Distortion (THDv)

<2% (Linear Load) <4% (Non-linear Load)

Dynamic in-rush Voltage Range

0%->100%->0% (R Load) < ±5% ; 20%->100%->20% (R Load) ±3%

Dynamic Recovery Time (III Grade)

0%~100% RCD load : < 60 ms recover to 90% of nominal voltage

Phase Displacement

120° ±1% (balanced load)

120° ±2% (imbalances 50% of the load)

Transfer Time

0 ms

Overload Capability

0% ~ 110% continuous running; 110% ~ 150% for 10 min~1 min; >160% for 200ms

Short-circuit Capability

60~100ms

Transient Response Time

< 5ms

BYPASS

Connection Type

Hardwire 5-wire (3Ph+N+G)

Input Voltage Range

220 VAC ± 25%

Overload Capability

1.5 In~1.8 In 1h~30s

Short-circuit Capability

1.8 In ~ >2.0 In 30s~200ms

SYSTEM

Efficiency (At Linear Load)

90%

91%

92%

93%

ECO Mode (Non-parallel models)

Yes

EPO Function

Yes

Standard

IEC 61000-4-5 Protection surge, IEC 62040-2 EMC/EMI, IEC62040-1 Safety

BATTERY & CHARGER

Rectifier

Type

6 pulse

6 pulse or 12 pulse

Rated output voltage

384 VDC

Charger voltage

395VDC ~ 435VDC (Adjustable)

Charging current(max)

20A

40A

50A

70A

Battery

Type

Support VRLA Battery

Numbers

32 Pcs (29 ~ 32 adjustable)

Reverse Diode

No

Cold Start

Yes

PHYSICAL

IP Protection

IP20 (Default), IP21/IP31 (Option)

Dimensions, D x W x H (mm)

800 x 800 x 1800

800 x 1200 x 1800

800 x 1600 x 1800

850 x 1630 x 1900

900 x 1700 x 1900

Net Weight (Kgs)

350

370

420

450

480

730

790

1000

1300

1400

1700

1900

2300

2500

ENVIRONMENT

Operating Temperature

0~ 35°C continuous running, 40°C 8-hour running at nominal input voltage, recharging batteries and no overload, 45°C derating to 85% with linear load

Humidity

0~90% (non-condensing)

Noise Level

Less than 70dB @ 1 Meter

Less than 72dB @ 1 Meter

MANAGEMENT

Modbus RS-232/RS485

Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC

Dry Contacts

6 outputs and 2 inputs

Optional SNMP

Power management from SNMP manager and web browser

Product specifications are subject to change without further notice.
