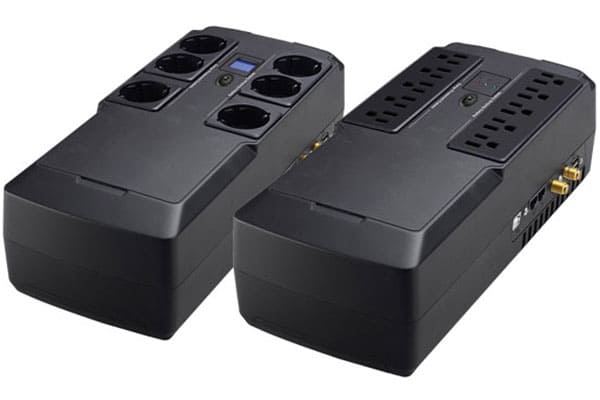

Socket Dual
Begitu praktis dan mudah digunakan.
Seri Socket Dual Emmerich memiliki fitur teknologi Off-line Sistem UPS, yang memberikan perlindungan daya yang andal untuk peralatan rumah tangga dan komputer. Hal ini menyediakan cadangan baterai dan melindungi soket dari lonjakan arus untuk memenuhi permintaan beberapa perangkat. Untuk mendapatkan perlindungan lonjakan arus pada home theater Anda, Socket Dual dapat menambahkan perlindungan coax surge protection.
Socket Dual menyediakan 6 soket output dengan kapasitas yang cukup untuk unit pusat dan ukurannya yang ringkas dan serba guna - pengoperasian tombol tekan, panel status LED/LCD, dan baterai yang dapat diganti - menjadikan Socket Dual mudah digunakan untuk melindungi sistem dari lonjakan arus dan pemadaman listrik.
Performances
Technical Specification
Download
Performances
- 350VA/400VA/550VA/600VA/750VA/800VA Standby UPS
- Compact size for standalone and mounting flexibility
- Excellent microprocessor control guarantees high reliability
- Auto restart while AC is recovering
- Simulated sine wave output
- Cold start function
- Optional USB communication port
- Optional 5V USB charger
- Optional RJ11 and coax surge protection
- Optional LCD version is also available upon request
Technical Specification
| MODEL |
SCD 350 |
SCD 550 |
SCD 750 |
SCD 400 |
SCD 600 |
SCD 800 |
| CAPACITY |
350VA / 210W |
550 VA / 330 W |
750 VA / 450 W |
400VA / 240W |
600 VA / 360 W |
800 VA / 480 W |
| INPUT |
| Voltage |
110/120 VAC |
220/230/240 VAC |
| Acceptable Voltage
Range |
90 - 145 VAC |
180 - 270 VAC |
| Frequency Range |
60 Hz / 50 Hz (Auto sensing) |
| OUTPUT |
| Voltage |
110/120 VAC |
220/230/240 VAC |
| AC Voltage Regulation (Batt. Mode) |
± 10 % |
| Frequency Range (Batt. Mode) |
60 Hz or 50 Hz ±1 Hz |
| Transfer Time |
Typical 2-6
ms, Max. 10ms |
| Waveform (Batt.
Mode) |
Simulated
Sinewave |
| BATTERY |
| Battery Type |
12 V/4Ah x 1 |
12V/4.5Ah x 1 |
12 V/5Ah x 1 |
12 V/4Ah x 1 |
12V/4.5Ah x 1 |
12 V/5Ah x 1 |
| Typical Recharge Time |
8 hours recover to 90% capacity |
| INDICATORS |
| AC Mode |
Green
lighting |
| Battery Mode |
Yellow flashing |
| Fault |
Red lighting |
| ALARM |
| Battery Mode |
Sounding
every 10 seconds |
| Low Battery |
Sounding
every second |
| Overload |
Sounding
every 0.5 second |
| Fault |
Continuously
sounding |
| PROTECTION |
| Full Protection |
Overload,
discharge, and overcharge protection |
| PHYSICAL |
| Dimension, D x W x
H(mm) |
305 x 158.5
x 95 |
| Net Weight (kgs) |
2.5 |
2.6 |
2.9 |
2.5 |
2.6 |
2.9 |
| ENVIRONMENT |
| Humidity |
0-90 % RH @ 0- 40°C (Non-condensing) |
| Noise Level |
Less than 40dB |
Product specifications are subject to change without further notice.
